Specifications

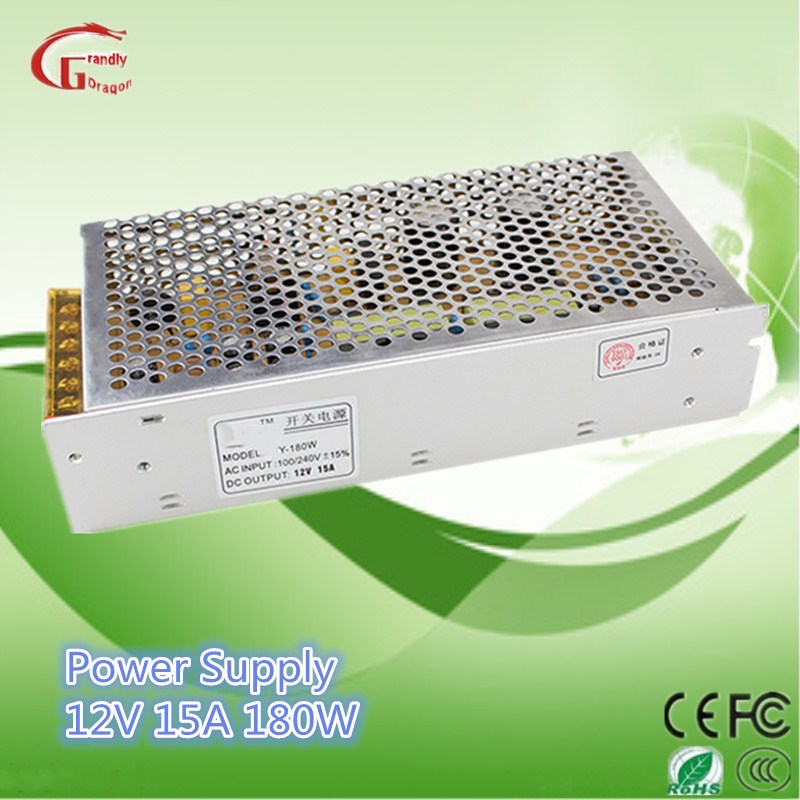

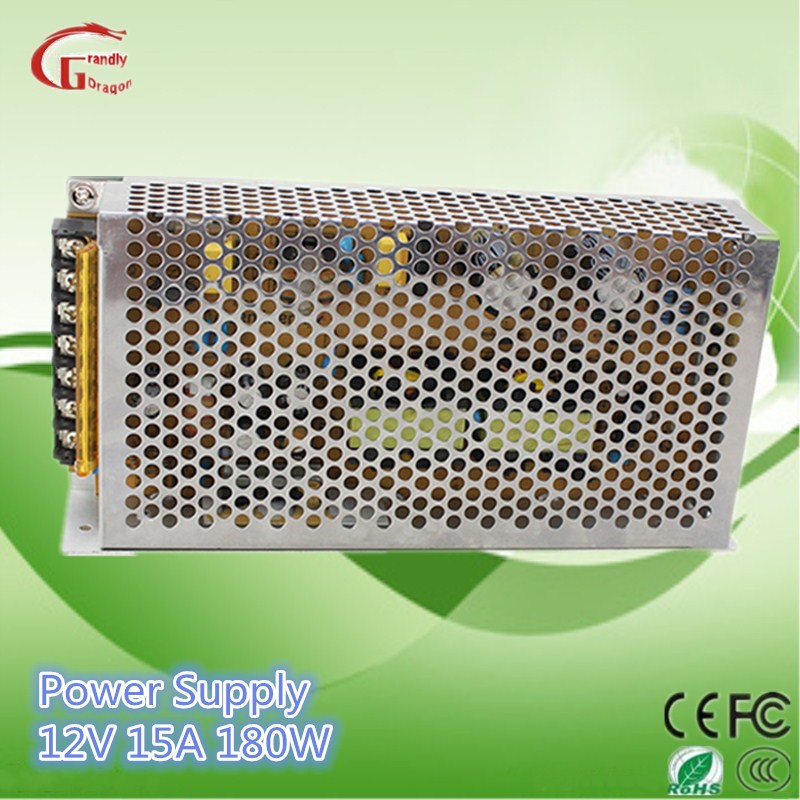

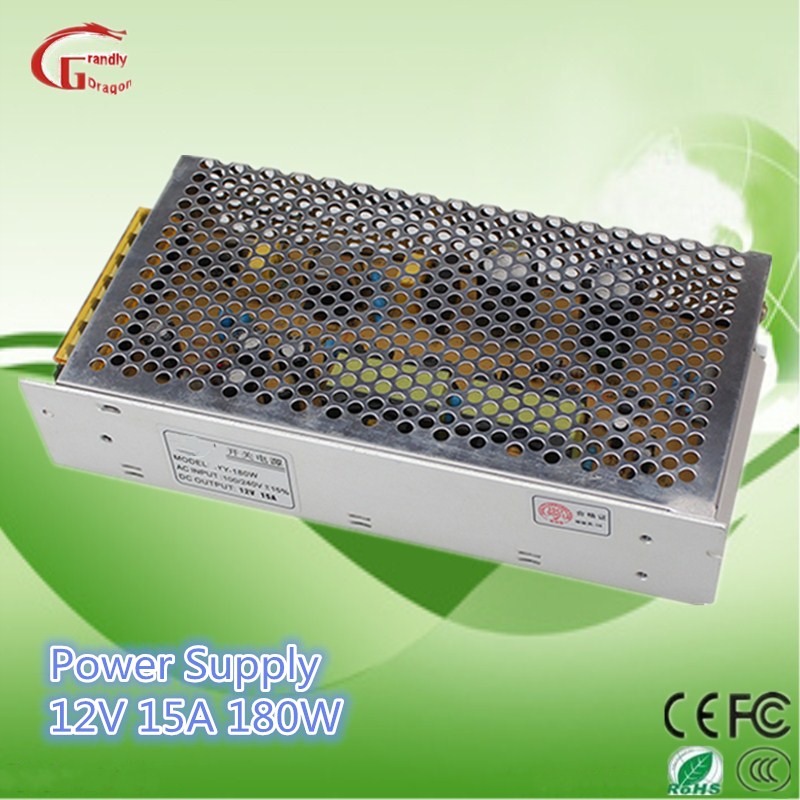

12v power supply&switching power supply&led power supply 12V 15A for LED and CCTV
1. Grade A, real power
2. Factory price
3. CE, Rohs, FCC
Product Description
12v power supply&switching power supply&led power supply 12V 15A for LED and CCTV
|
Output |
DC output voltage |
12V |
12V |
12V |
|
Output voltage tolerance |
±1% |
±1% |
±1% |
|
Rated output current |
5A |
15A |
20A |
|
Output current |
0~10A |
0~8A |
0~5A |
|
Output power |
60W |
180W |
240W |
|
Ripple and noise |
100mVp-p |
120mVp-p |
120mVp-p |
|
DC adjustable range |
±10% |
±10% |
±10% |
|
Setup rise hold up time |
200ms,50ms,20ms |
|
Input |
Input voltage range |
85~132VAC 170~264VAC 47~63Hz;240~370VDC |
|
AC input current |
2.4A/115V 1.2A/230VAC |
|
Efficiency |
84% |
84% |
87% |
|
AC inrush current |
Cold start current 20A/115V 40A/230V |
|
Leakage current |
<1mA/240VAC |
|
Protection |
Over load protection |
105%~135%rated output power start the over load protection |
|
Protection mode : Hiccup mode ,auto-recovery |
|
Over-voltage protection |
115-135%cut off the output ,auto-recovery |
|
|
|
Environment |
Working temperature |
-10ºC~+60ºC;20%~90%RH(please refer to the Load deduction curve) |
|
Safety |
Withstand voltage |
Between input and output::1.5KVAC The input and ground : 1.5KVAC The output and ground :0.5KVAC |
|
Insulation resistance |
Between input and output: The input and ground, the output and ground: 100M 0hms /500VDC |
Quality Guarantee=5 times test + 7S every day
100% more than 2 Hour Burn-In Test
100% 4 times electrical performance test
100% dropping test from 6 surface
100% Solder ball vibration test
100% Hi-Pot Tes
Q1: Can I get free sample?
A1: Generally we don't provide free sample, but we can return sample cost when the buyer plant a bulk order.
Q2: How should I pay?
A2: You can pay via T/T, Western Union, Money gram etc., For large quantities, 30% T/T in advance as soon as order confirmed and the balance before shipping via T/T. If you prefer other payment terms, please contact us freely.
Q3: What is your package looks like? Can I have the customized package?
A3: We have factory's current standard package, customized print logo shall be complied to buyer's requirements, and the extra charges will be borne by the buyers, for more details, please contact us.
Q4: What is delivery time if we place an order?
A4: It depends order quantities. Usually, we can deliver goods within 3 -5 working days for small orders, for more QTY. Order, let's confirm when you place offical order.
5: Are your factory or trading company?
A5: We are proffesiona manufacturer. We provide all kinds of OEM/ODM services for clients around global.
Q6: Where are your company's major markets?
A6: Our company focus on high quality, targetting on North Amercia, Europe, Korea and Japan markets.
Our Services
1. Excellent QC team, test one by one before shipping
2. Best price for both product and the freight charge.
3. Packed strictly, ensure the safety in transporting.
4. Excellent after-sale service, 13 months warranty.
WHY CHOOSE US
Production
Factory direct sales, quality guarantee, can customized logo, design, color. Size
Technology
Adopt international advanced technology, high product purity.
Equipment
With world-class testing equipment, to assured that quality is best.
