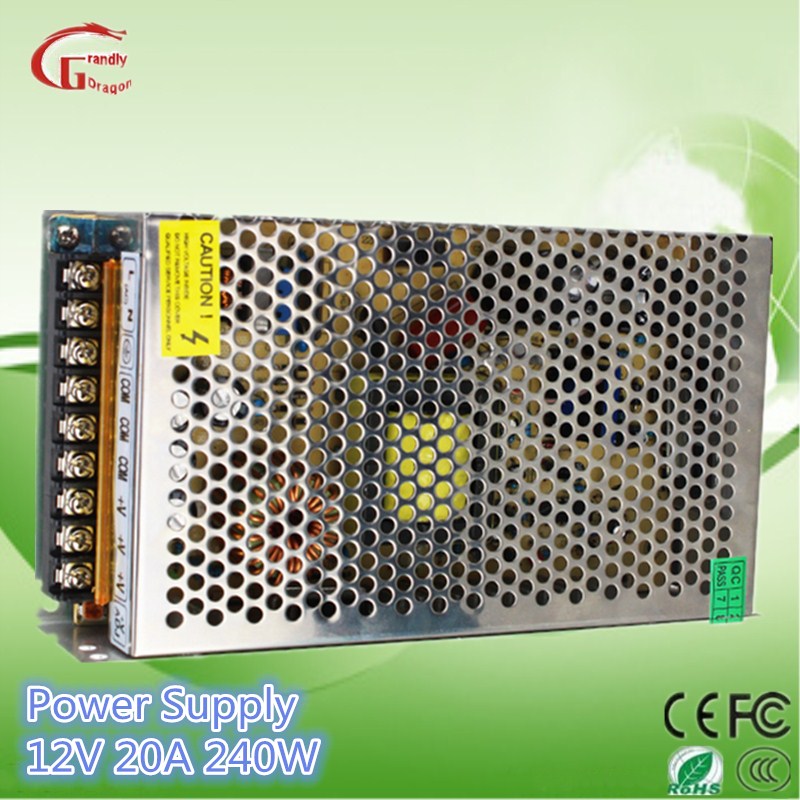

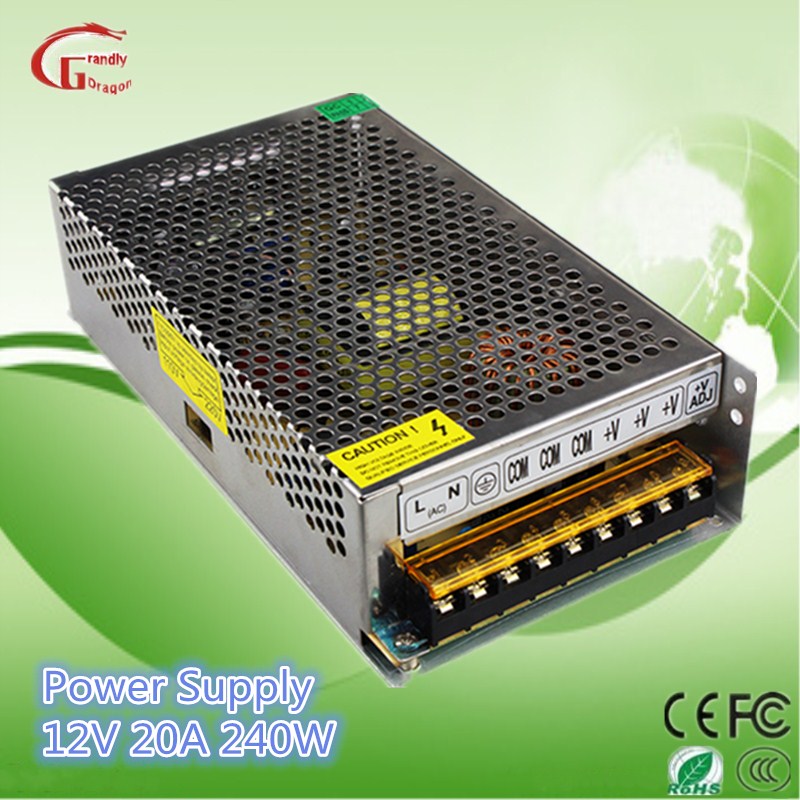

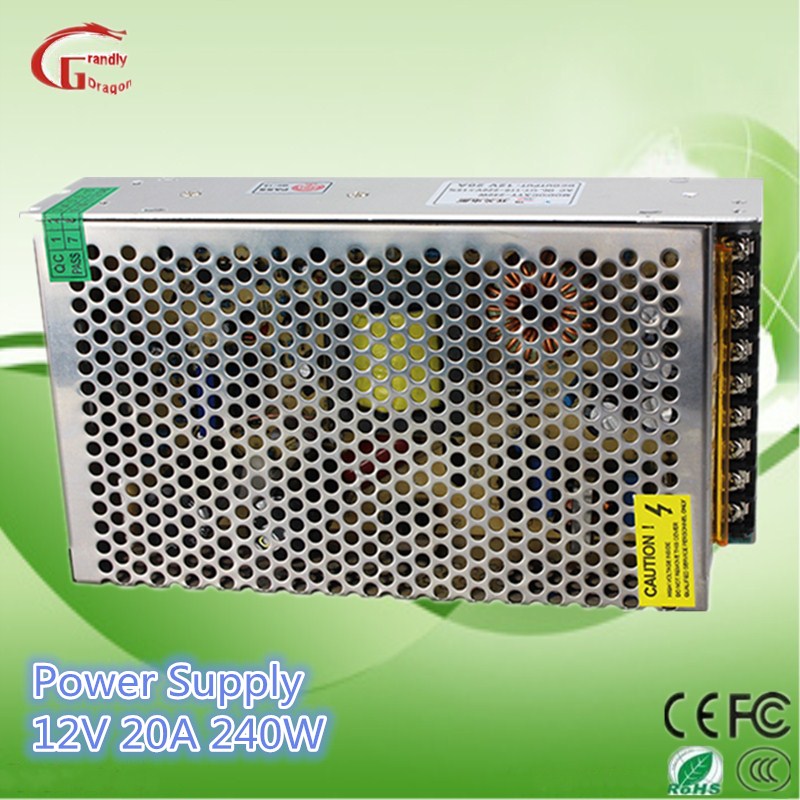

12V 20A Switching Power Supply Ce RoHS Approved

Hotline:13168731685

Product Description

Product Description

 Specifications
12V 20A AC/DC switching power supply 250W with CE ROHS approved
1. Grade A, real power
2. Factory price
3. CE, Rohs, FCC
Product Description
12V 20A AC/DC switching power supply 250W with CE ROHS approved
Output DC output voltage 12V 12V 12V
Output voltage tolerance ±1% ±1% ±1%
Rated output current 5A 15A 20A
Output current 0~10A 0~8A 0~5A
Output power 60W 180W 240W
Ripple and noise 100mVp-p 120mVp-p 120mVp-p
DC adjustable range ±10% ±10% ±10%
Setup rise hold up time 200ms,50ms,20ms
Input Input voltage range 85~132VAC 170~264VAC 47~63Hz;240~370VDC
AC input current 2.4A/115V 1.2A/230VAC
Efficiency 84% 84% 87%
AC inrush current Cold start current 20A/115V  40A/230V
Leakage current <1mA/240VAC
Protection Over load protection 105%~135%rated output power start the over load protection
Protection mode : Hiccup mode ,auto-recovery
Over-voltage protection 115-135%cut off the output ,auto-recovery

Environment Working temperature -10&ordm;C~+60&ordm;C;20%~90%RH(please refer to the  Load deduction curve)
Safety Withstand voltage Between input and output::1.5KVAC The input and ground : 1.5KVAC The output and ground :0.5KVAC
Insulation resistance Between input and output: The input and ground, the output and ground: 100M 0hms /500VDC



Quality Guarantee=5 times test + 7S every day
100% more than 2 Hour Burn-In Test
100% 4 times electrical performance test
100% dropping test from 6 surface
100% Solder ball vibration test
100% Hi-Pot Tes
Q1: Can I get free sample?
A1: Generally we don't provide free sample, but we can return sample cost when the buyer plant a bulk order.
Q2: How should I pay?
A2: You can pay via T/T, Western Union, Money gram etc., For large quantities, 30% T/T in advance as soon as order confirmed and the balance before shipping via T/T. If you prefer other payment terms, please contact us freely.
Q3: What is your package looks like? Can I have the customized package?
A3: We have factory's current standard package, customized print logo shall be complied to buyer's requirements, and the extra charges will be borne by the buyers, for more details, please contact us.
Q4: What is delivery time if we place an order?
A4: It depends order quantities. Usually, we can deliver goods within 3 -5 working days for small orders, for more QTY. Order, let's confirm when you place offical order.
5: Are your factory or trading company?
A5: We are proffesiona manufacturer. We provide all kinds of OEM/ODM services for clients around global.
Q6: Where are your company's major markets?
A6: Our company focus on high quality, targetting on North Amercia, Europe, Korea and Japan markets.

Our Services
1. Excellent QC team, test one by one before shipping
2. Best price for both product and the freight charge.
3. Packed strictly, ensure the safety in transporting.
4. Excellent after-sale service, 13 months warranty.

WHY CHOOSE US
Production
Factory direct sales, quality guarantee, can customized logo, design, color. Size
Technology
Adopt international advanced technology, high product purity.
Equipment
With world-class testing equipment, to assured that quality is best.
Quality
CE FCC RoHS certificated
