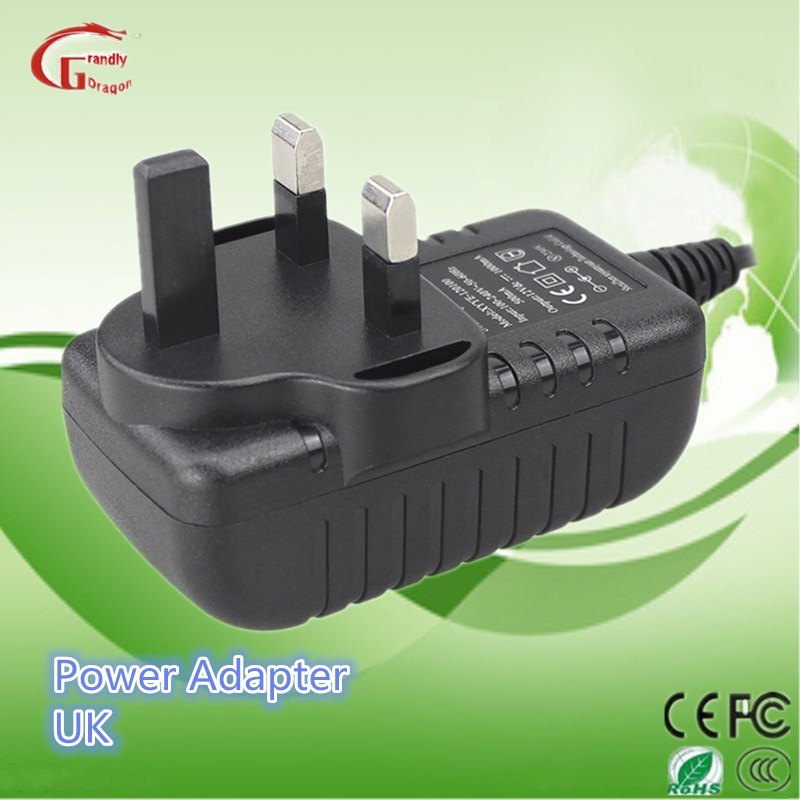

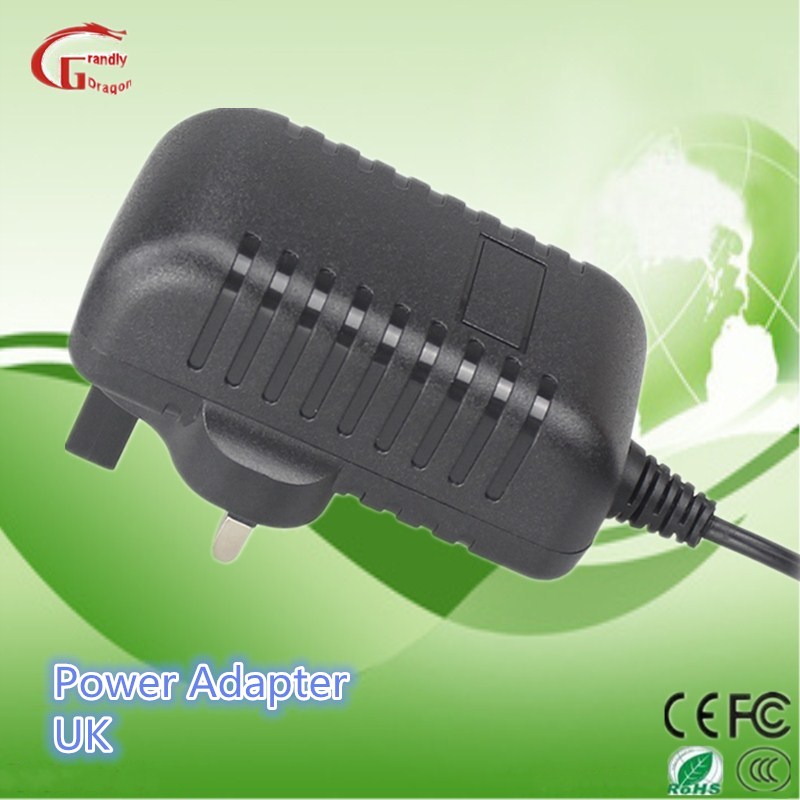

24v 1a 24w power supply adapter for led strips
|in||Safety Approvals Input Voltage Range||100~240Vac|
|Operate Voltage Range||90~264Vac|
|IiI||Input Current Low Line||Io=Full load, Vin=100VAC||2.5A|
|Iih||Input Current High Line||Io=Full load, Vin=240VAC||1.2A|
|Ir||Inrush Current Low Line||Io=Full load, 25ºC ,Cool start, Vin=115Vac||30A|
|Inrush Current High Line||Io=Full load, 25ºC ,Cool start, Vin=230Vac||40A|
|REG-i||Line Regulation||Io=Full load||0.5~2%|
|OCP||Over Current Protection||Auto recovery||120~150%|
|Ttr||Time of Transient Response||Io=Full load to Hakf Load, Vin=100Vac||4mS Max.|
|Th||Hold-up Time||Io=Full load, Vin=110Vac||10mS Min.|
|Ts||Start Up Time||Io=Full load, Vin=100Vac||3S Max.|
|Vp-p||Ripple & Noise Peak to Peak||Io=Full load, Vin=90Vac||1% Max.|
|Ilk||Safety Ground Leakage Current||Vin=240Vac/60Hz||0.75A Max.|
|TC||Temperature Coefficinet||All output||'+/-0.04%/ºC|
|Pno||No-Load Power Consumption||No load, Vin=230Vac||0.5W|
|Vps||Dielectric Withstanding Voltage||Primary to secondary||3750Vac Min./3S|
|Ho||Operating Relative Humidity||5~95%||
|MTBF||Operating Temperature at 25ºC Calculated per MIL-HDBK-217F||30000 hrs||
Q1: Can I get free sample?
A1: Generally we don't provide free sample, but we can return sample cost when the buyer plant a bulk order.
Q2: How should I pay?
A2: You can pay via T/T, Western Union,Money gram etc., For large quantities, 30% T/T in advance as soon as order confirmed and the balance before shipping via T/T . If you prefer other payment terms, please contact us freely.
Q3: What is your package looks like? Can I have the customized package?
A3: We have factory's current standard package, customized print logo shall be complied to buyer's requirements, and the extra charges will be borne by the buyers, for more details, please contact us.
Q4: What is delivery time if we place an order?
A4: It depends order quantities. Usually, we can deliver goods within 3 -5 working days for small orders, for more QTY. order, let's confirm when you place offical order.
5: Are your factory or trading company?
A5: We are proffesiona manufacturer . We provide all kinds of OEM/ODM services for clients around global.
Q6: Where are your company's major markets?
A6: Our company focus on high quality , targetting on North Amercia, Europe, Korea and Japan markets.
1. Excellent QC team, test one by one before shipping
2. Best price for both product and the freight charge.
3 .Packed strictly, ensure the safety in transporting.
4. Excellent after-sale service, 13 months warranty.
WHY CHOOSE US
Factory direct sales,quality guarantee,can customized logo,design,color.size
Adopt international advanced technology, high product purity.
With world-class testing equipment, to assured that quality is best.
CE FCC RoHS certificated
