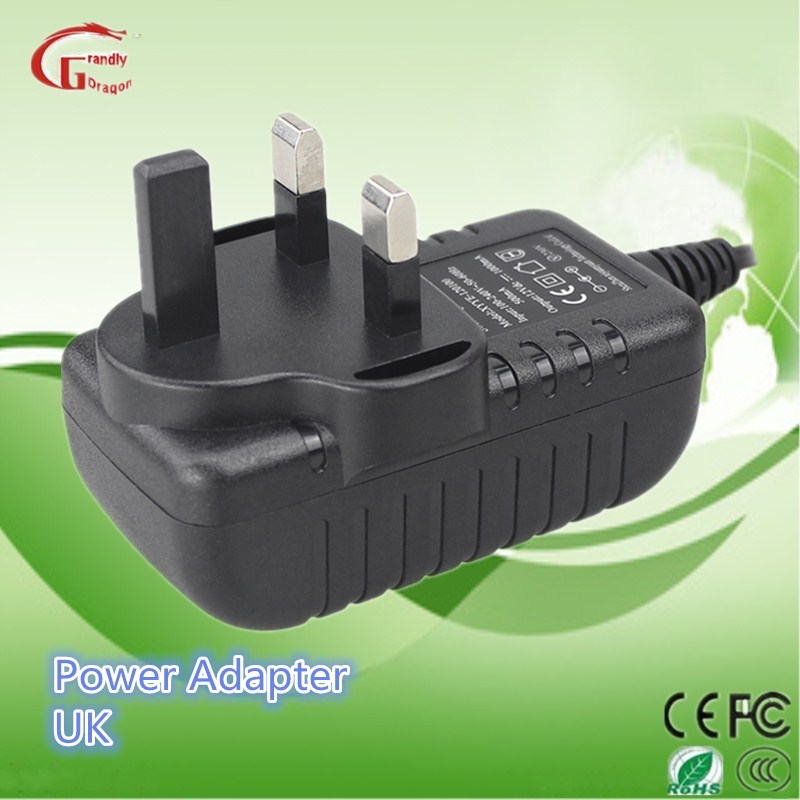

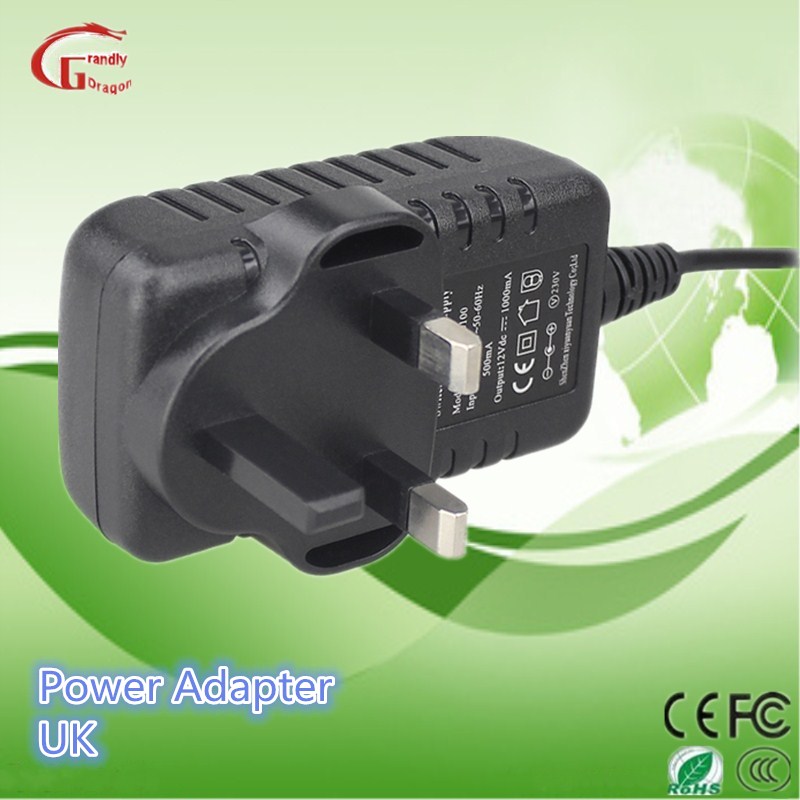

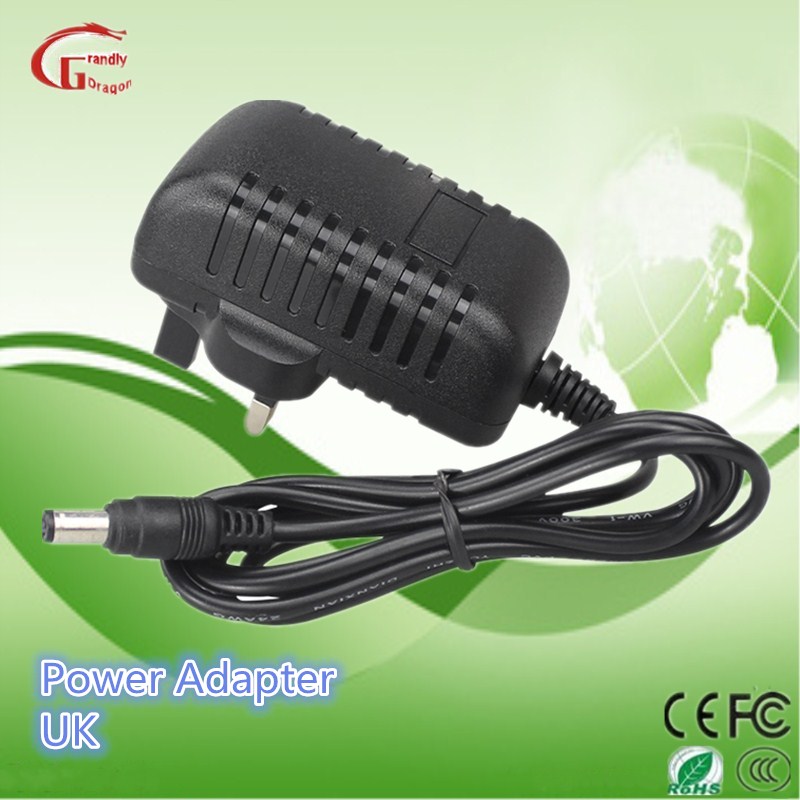

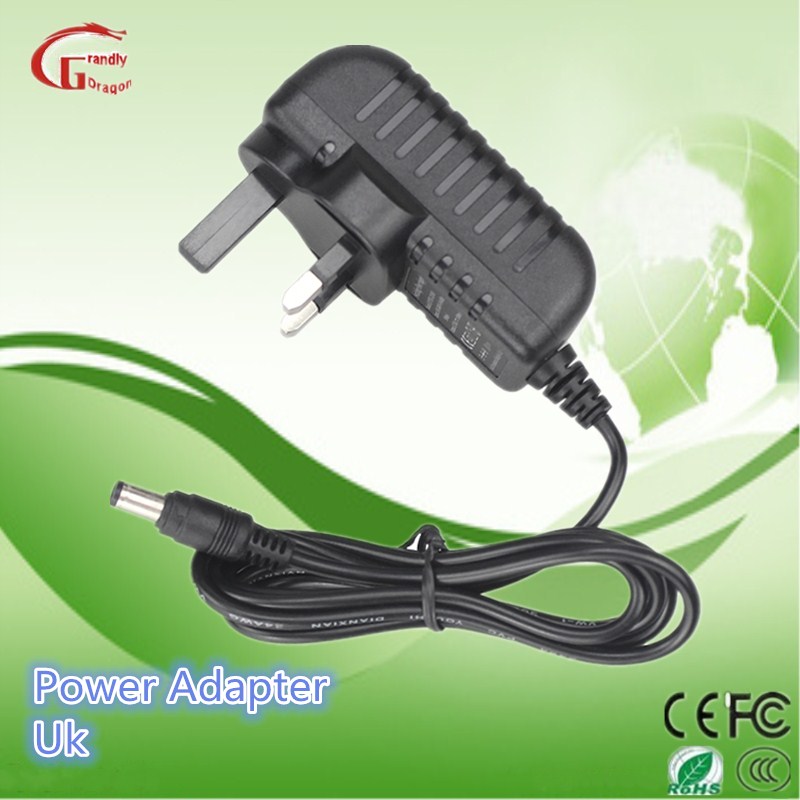

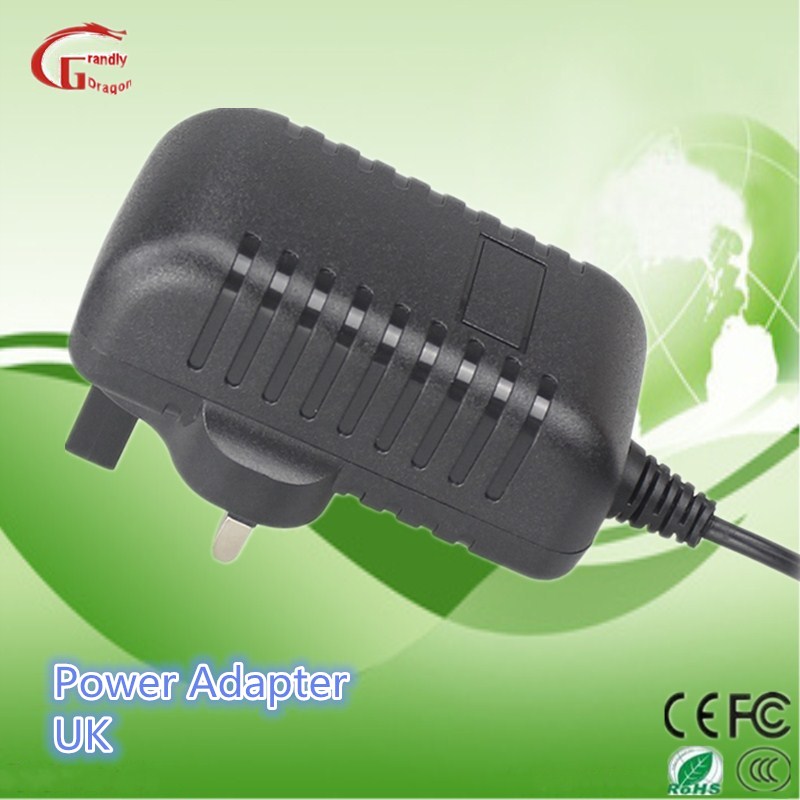

18W CCTV Camera Power Supply
  • 18W CCTV Camera Power Supply
  • 18W CCTV Camera Power Supply
  • 18W CCTV Camera Power Supply
  • 18W CCTV Camera Power Supply
  • 18W CCTV Camera Power Supply

18W CCTV Camera Power Supply


Product Description

Product Description

18W Power Supply used for CCTV Camera plug in 18V1A AC DC Adapter UL CE approved 18Vdc 1A
Vin Safety Approvals Input Voltage Range   100~240Vac
Operate Voltage Range   90~264Vac
Fin Input Frequency   47~63Hz
Po Output Power Range   18w
Vo Output Voltage Range   18V
Io Output Current Range   1A
IiI Input Current Low Line Io=Full load, Vin=100VAC 0.3A
Iih Input Current High Line Io=Full load, Vin=240VAC 0.6A
Ir Inrush Current Low Line Io=Full load, 25ºC ,Cool start, Vin=115Vac 15A
Inrush Current High Line Io=Full load, 25ºC ,Cool start, Vin=230Vac 30A
Eff Efficiency Io=Full load,Vin=230Vac 80~90%
REG-i Line Regulation Io=Full load 0.5~2%
REG-o Load Regulation Vin=230Vac 4~5%
OCP Over Current Protection Auto recovery 120~150%
Ttr Time of Transient Response Io=Full load to Hakf Load, Vin=100Vac 4mS Max.
Th Hold-up Time Io=Full load, Vin=110Vac 10mS Min.
Ts Start Up Time Io=Full load, Vin=100Vac 3S Max.
Vp-p Ripple & Noise Peak to Peak Io=Full load, Vin=90Vac 1% Max.
Ilk Safety Ground Leakage Current Vin=240Vac/60Hz 0.75A Max.
TC Temperature Coefficinet All output '+/-0.04%/ºC
Pno No-Load Power Consumption No load, Vin=230Vac 0.5W
Vps Dielectric Withstanding Voltage Primary to secondary 3750Vac Min./3S
Ris Isolation Resistance Test Voltage=500Vdc 50MΩ
To Operating Temperature '-29~45.5ºC
Ts Storage Temperature '-40~70%
Ho Operating Humidity 20~90%
Hr Storage Humidity 20~90%
MTBF Operating Temperature at 25ºC Calculated per MIL-HDBK-217F 40000 hrs

Q1: Can I get free sample?
A1: Generally we don't provide free sample, but we can return sample cost when the buyer plant a bulk order.
Q2: How should I pay?
A2: You can pay via T/T, Western Union,Money gram  etc.,  For large quantities, 30% T/T in advance as soon as order confirmed and the balance before shipping via T/T . If you prefer other payment terms, please contact us freely.
Q3: What is your package looks like? Can I have the customized package?
A3: We have factory's current standard package, customized print logo shall be complied to buyer's requirements, and the extra charges will be borne by the buyers, for more details, please contact us.
Q4: What is delivery time if we place an order?
A4: It depends order quantities. Usually, we can deliver goods within 3 -5 working days for small orders, for more QTY. order, let's confirm when you place offical order.
5: Are your factory or trading company?
A5: We are proffesiona  manufacturer . We provide all kinds of OEM/ODM services for clients around global.
Q6: Where are your company's major markets?
A6: Our company focus on high quality , targetting on North Amercia, Europe, Korea and Japan markets.

Our Services
1. Excellent QC team, test one by one before shipping
2. Best price for both product and the freight charge.
3 .Packed strictly, ensure the safety in transporting.
4. Excellent after-sale service, 13 months warranty.

Factory direct sales,quality guarantee,can customized logo,design,color.size
Adopt international advanced technology, high product purity.
With world-class testing equipment, to assured that quality is best.
CE FCC RoHS certificated
