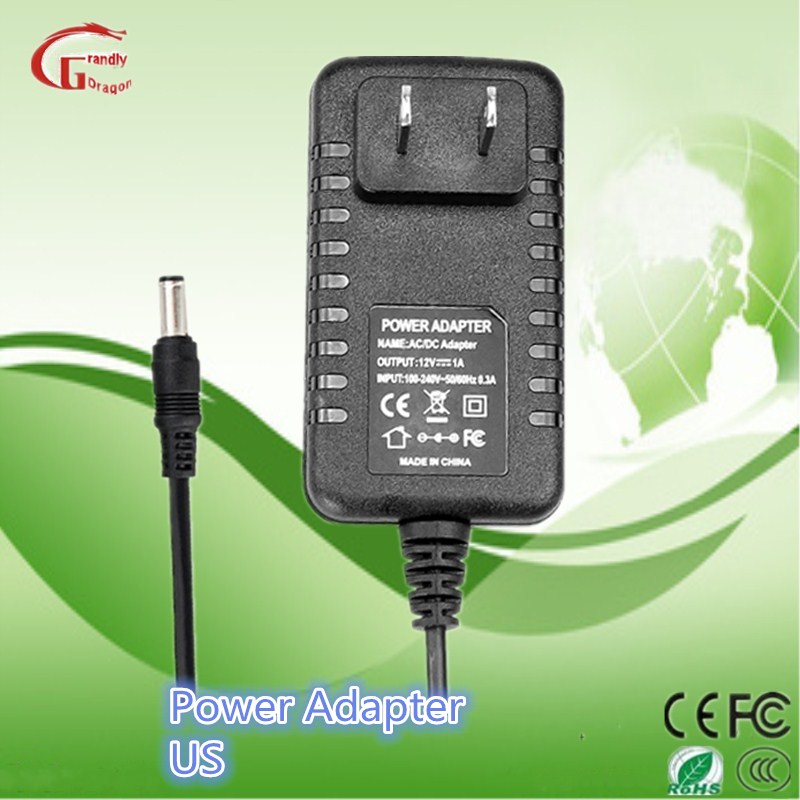

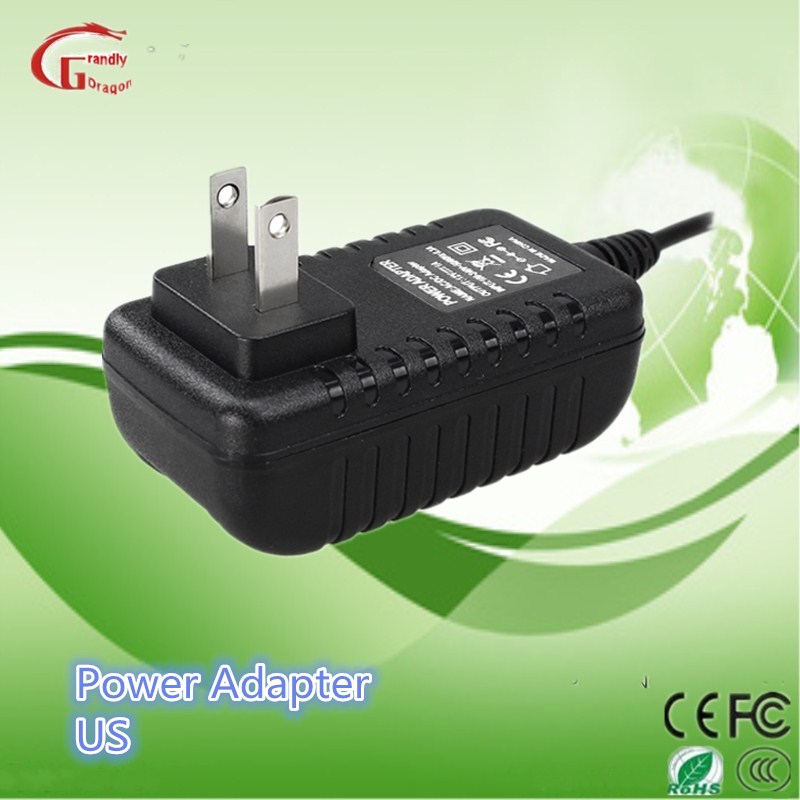

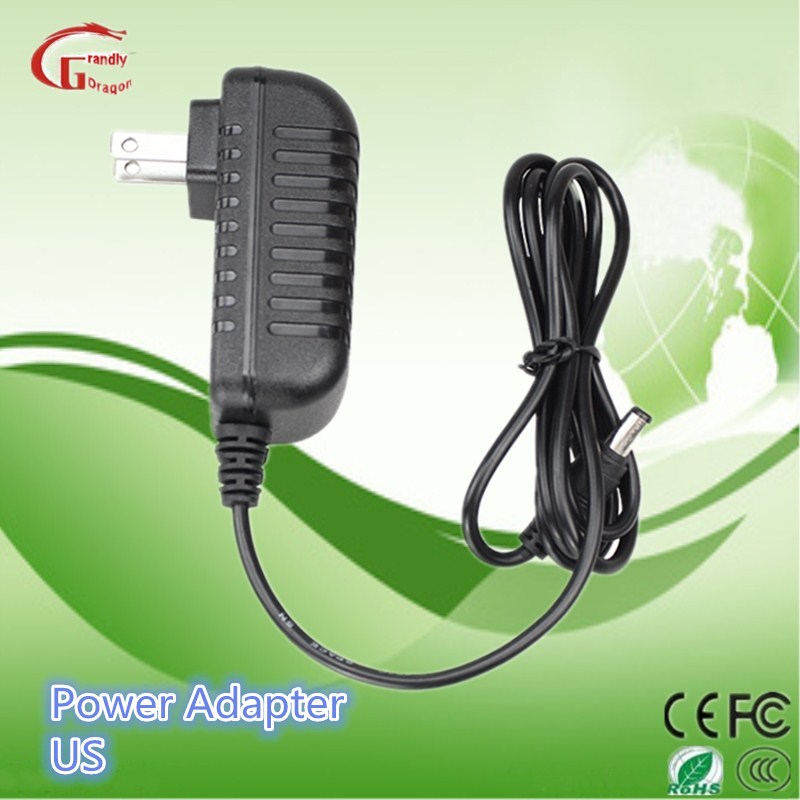

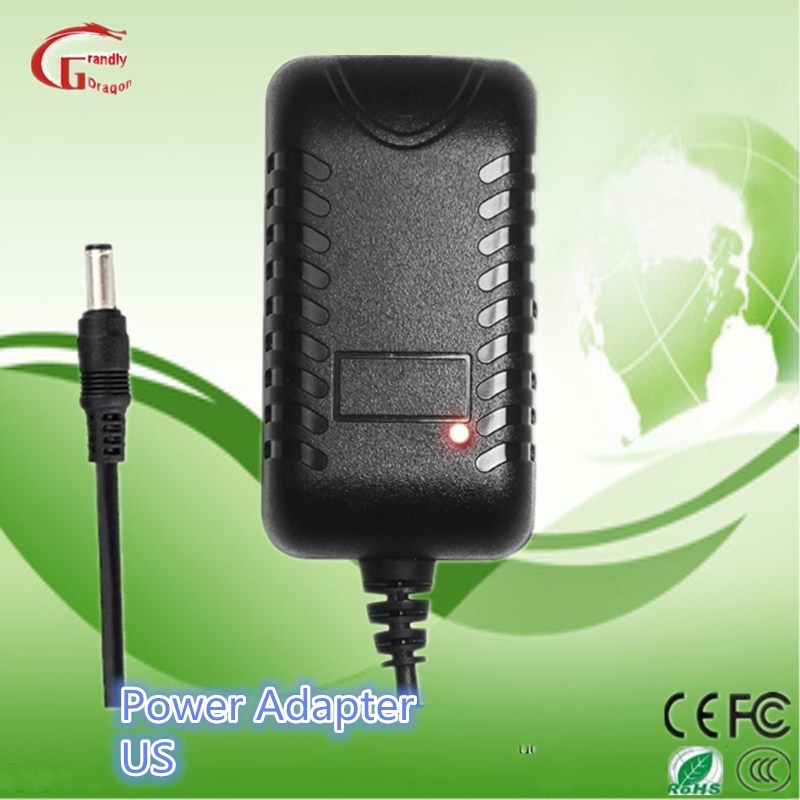

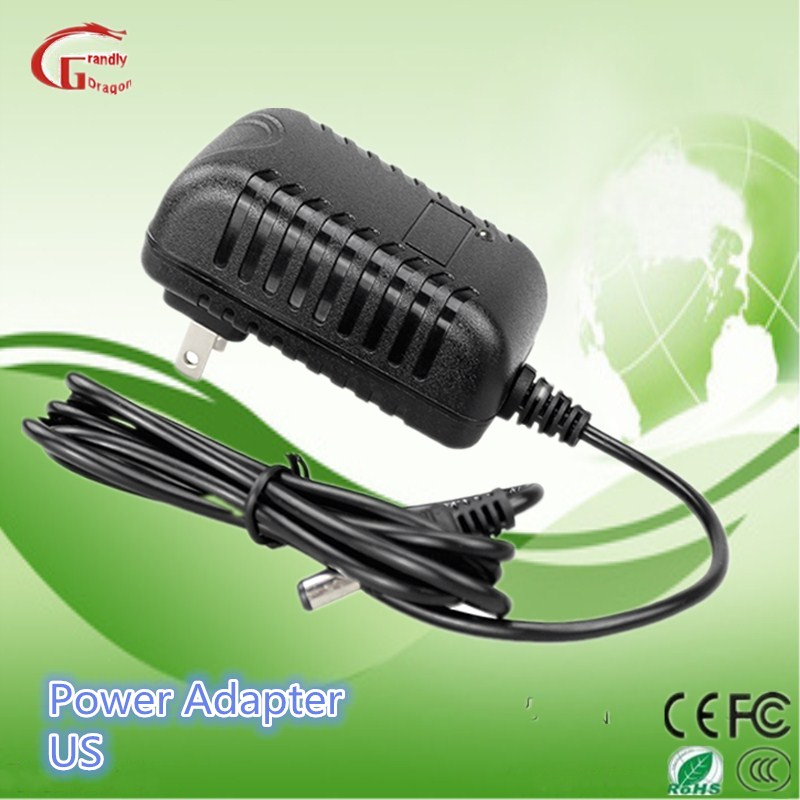

Professional Manufacturer power adapter 12v 2a
Vin |
Safety Approvals Input Voltage Range |
100~240Vac | |
Operate Voltage Range |
90~264Vac | ||
Fin |
Input Frequency |
50/60Hz | |
Po |
Output Power |
24W | |
Vo |
Output Voltage |
12 VDC +/-5% | |
Io |
Output Current |
2A | |
IiI |
Input Current Low Line |
Io=Full load, Vin=100VAC |
2.5A |
Iih |
Input Current High Line |
Io=Full load, Vin=240VAC |
1.2A |
Ir |
Inrush Current Low Line |
Io=Full load, 25ºC ,Cool start,Vin=115Vac |
30A |
Inrush Current High Line |
Io=Full load, 25ºC ,Cool start,Vin=230Vac |
40A | |
Eff |
Efficiency |
Io=Full load,Vin=230Vac |
88% |
REG-i |
Line Regulation |
Io=Full load |
0.5~2% |
REG-o |
Load Regulation |
Vin=230Vac |
4~5% |
OCP |
Over Current Protection |
Auto recovery |
120~150% |
Ttr |
Time of Transient Response |
Io=Full load to Hakf Load, Vin=100Vac |
4mS Max. |
Th |
Hold-up Time |
Io=Full load, Vin=110Vac |
10mS Min. |
Ts |
Start Up Time |
Io=Full load, Vin=100Vac |
3S Max. |
Vp-p |
Ripple & Noise Peak to Peak |
Io=Full load, Vin=90Vac |
1% Max. |
Ilk |
Safety Ground Leakage Current |
Vin=240Vac/60Hz |
0.75A Max. |
TC |
Temperature Coefficinet |
All output |
+/-0.04%/ºC |
Pno |
No-Load Power Consumption |
No load, Vin=230Vac |
0.21W |
Vps |
Dielectric Withstanding Voltage |
Primary to secondary |
3750Vac Min./3S |
